UltiMaker - Speaker - 50 SQ - 8ohm - Ex Ultimaker S5

Speaker - K 50 SQ - 8ohm - Ex Ultimaker S5



Rated power	2 W
Maximum power	3 W
Nominal impedance Z	8 Ohm
Frequency response	250–10000 Hz
Mean sound pressure level	83 dB (1 W/1 m)

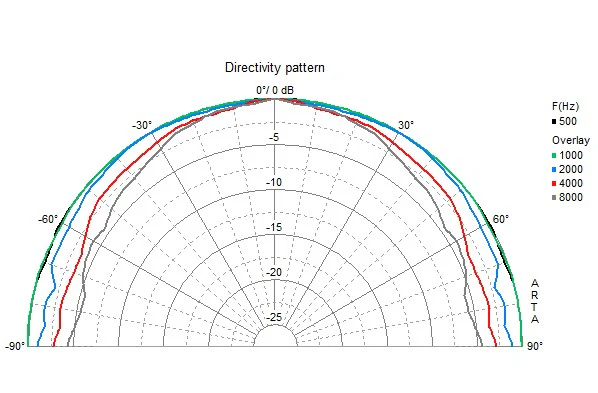

Opening angle (-6 dB)	180°/4000 Hz
Excursion limit	+/−1 mm
Resonance frequency fs	480 Hz
Height of front pole-plate	2 mm
Voice coil diameter	14 mm
Height of winding	3 mm

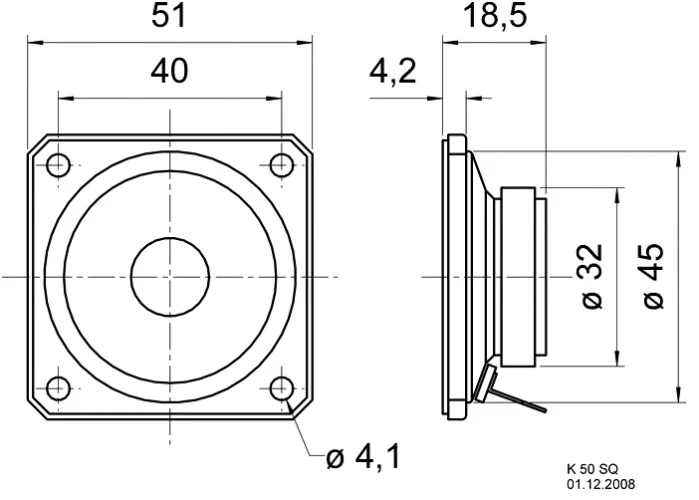

Cutout diameter	45 mm
Net weight	0.05 kg
D.C. resistance Rdc	7.3 Ohm
Mechanical Q factor Qms	6.42
Electrical Q factor Qes	7.32
Total Q factor Qts	3.42
Equivalent volume Vas	0.06 l
Effective piston area Sd	12.5 cm²
Dynamically moved mass Mms	0.4 g
Force factor Bxl	1.12 T m
Connections	2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Protective system	IP 65
Temperature range	−40 ... 80 °C

Speaker - K 50 SQ - 8ohm

Passer ex til Ultimaker S5

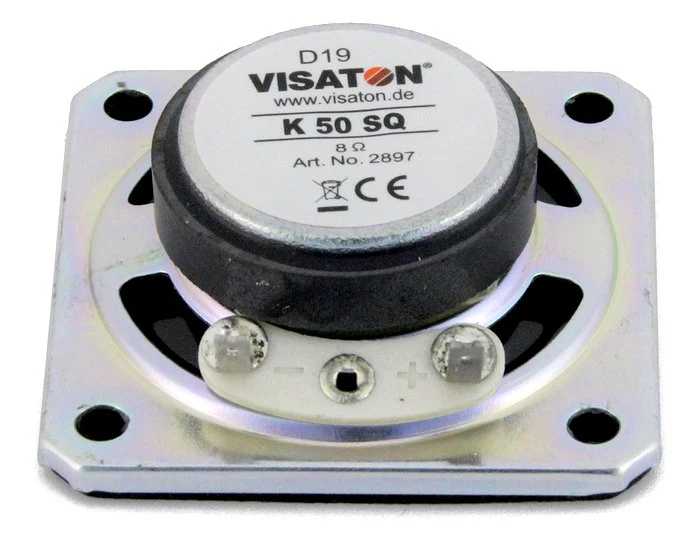

5 cm (2") miniaturehøjttaler med plastmembran, firkantet metalkurv med 4 monteringshuller og skumpakning. 2,8x0,5mm kontaktstift.
